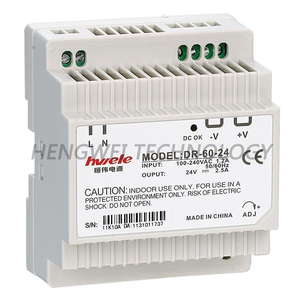

Bộ nguồn Din Rail 24VDC-60W-2,5A

MODEL

DR-60-24

OUTPUT

DC VOLTAGE

24V

RATED CURRENT

2.5A

CURRENT RANGE

0 ~ 2.5A

RATED POWER

60W

RIPPLE & NOISE (max.) Note.2

150mVp-p

VOLTAGE ADJ.RANGE

21.6 ~ 26.4V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±1.0%

LOAD REGULATION

±1.0%

SETUP, RISE TIME

100ms, 30ms/230VAC 200ms, 30ms/115VAC at full load

HOLD TIME(Typ.)

100ms/230VAC 23ms/115VAC at full load

INPUT

VOLTAGE RANGE

88 ~ 264VAC 124 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

84%

AC CURRENT

1.2A/115VAC 0.8A/230VAC

INRUSH CURRENT(max.)

COLD START 18A/115VAC 36A/230VAC

PROTECTION

OVERLOAD

105 ~ 160% rated output power

Protection type: Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

27.6 ~ 32.4V

Protection type: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.

-20 ~ +60ºC

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85ºC, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/ºC (0 ~ 50ºC)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note 4)

SAFETY STANDARDS

Design refer to UL60950-1, TUV EN60950-1, EN50178

WITHSTAND VOLTAGE

I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT

Compliance to EN61000-3-2,-3

EMS IMMUNITY

Compliance to EN61000-4-2, 3, 4, 5; ENV50204, EN55024, Light industry level, criteria A

OTHERS

MTBF

216.2K hrs min. MIL-HDBK-217F (25ºC)

DIMENSION

78*93*56mm (L*W*H)

PACKING

0.3Kg; 45pcs/13.5Kg/1.02CUFT
