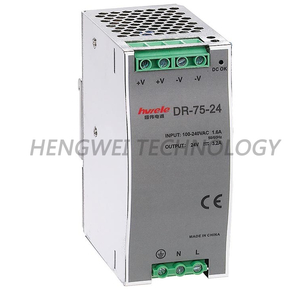

Bộ nguồn Din Rail 24VDC-75W-3,2A

Model

DR-75-24

DC output voltage

24V

Output voltage range(Note:2)

±1%

Rated output current

3.2A

Output current range

0-3.2A

Wave and noise(Note:3)

150mVp-p

Inlet stability(Note:4)

±0.5%

Load stability(Note:5)

±1%

Efficiency

80%

Adjustable range for DC voltage

21.6~26.4V%

AC input voltage range

85~264VAC 47~63Hz;120~370VDC

Input current

1.8A/115V 0.9A/230V

AC inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%~150% Type: pulsing hiccup shutdown Reset: tuto recovery

Over-voltage protection

27.6~26.4V

Temperature coefficient

±0.03%/°c(0~50°c)

Setup, rise , hold up time

1000ms, 60ms, 50ms/230V

Vibration

10~500Hz, 2G 10min,/1cycle, Period for 60min, Each axes

Withstand voltage

Input and output internal: Input and encolsur: 1.5KvAC, Output and enclosure: 0.5KvAC

Isolation resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

Working temperature and humidity

-10°c~+60°c(Refer to output derating curve), 20%~90%RH

Overall dimension

55.5×125.2×100mm

Weight

0.551Kgs 20PCS/14Kg/1.1CUFT

Safety standards

Meet UL 1012 requiement (Not apply for the mark)

EMC standards

Meet FCC PART 15 J Conduction class B
