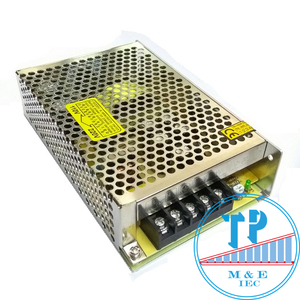

Bộ nguồn tổ ong 50W/5VDC/10A

Model

S-50-5

OUTPUT

DC Voltage

5V

Voltage Tolerance

±2%

Rated Current

10A

Current Range

0-10A

Rated Power

50W

Ripple & Noise

75mVp-p

DC Adjustment Range

+10,-5%

Setup, Rise, Hold Time

200ms,100ms,20ms Loaded with

INPUT

Voltage Range

85～132 VAC/170～264VAC 47～63 Hz by switch 240～370VDC

AC Curren

1.3A/115 V 0.65A/ 230 V

Efficiency

71%

Inrush Current

Cold start current
18A/115V 36A/230V

Leakage Current

＜1 mA/240VAC

PROTECTION

Overload protection

110%～160%

Protection way: current limiting, automatic recovery

ENVIRONMENT

Working temperature, humidity

-10℃～+60℃；20%～90 %RH

Keep temperature, humidity

-20℃～+85℃；10%～95 %RH

Vibrate resistance

10～500Hz，2G 10min./1 cycle time, 60 minutes, the axis

SAFETY

Compression sex

Input/output: 1.5 KVAC input and between
：1.5KVAC Output and to
：0.5KVAC

Insulation resistance

Between the input and output, the input and output, and ground:
100M Ohms/500VDC

OTHERS

Weight

0.5Kg

Packaging

30pcs/15.8Kg/0.99CUFT

STANDARD

Safety standards

Meet UL1012

EMC standards

Design refer to FCC Part15 J Conduction Class B

NOTE

All the parameters in has not specified, all is in 230 VAC voltage input, rated load and 25 ℃ conditions measuring income value.

Ripple and noise voltage is in 20 MHz bandwidth oscilloscope take 12 inches twisted pair end with 0.1 mu and 47 u when capacitance measurement.
